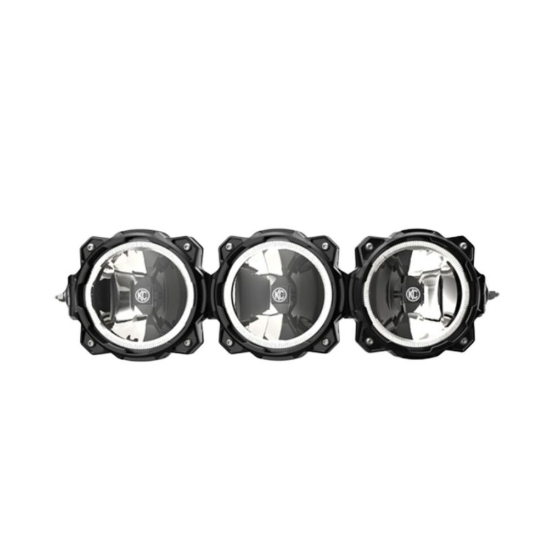

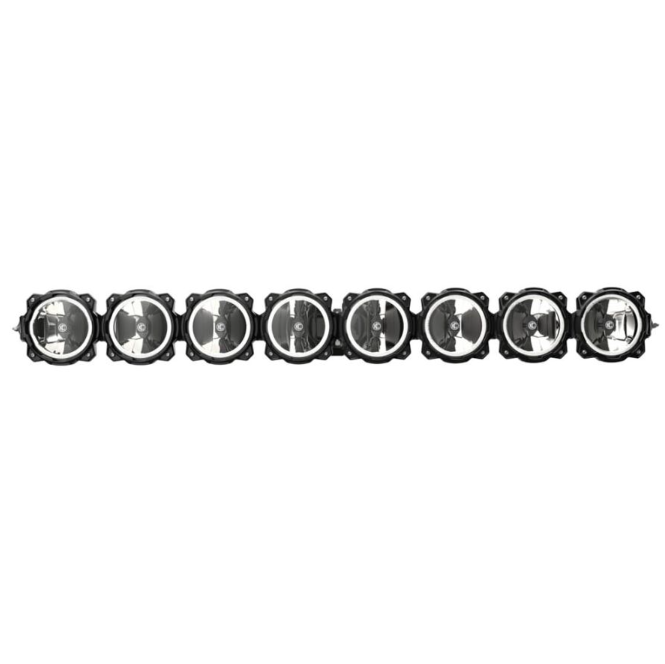

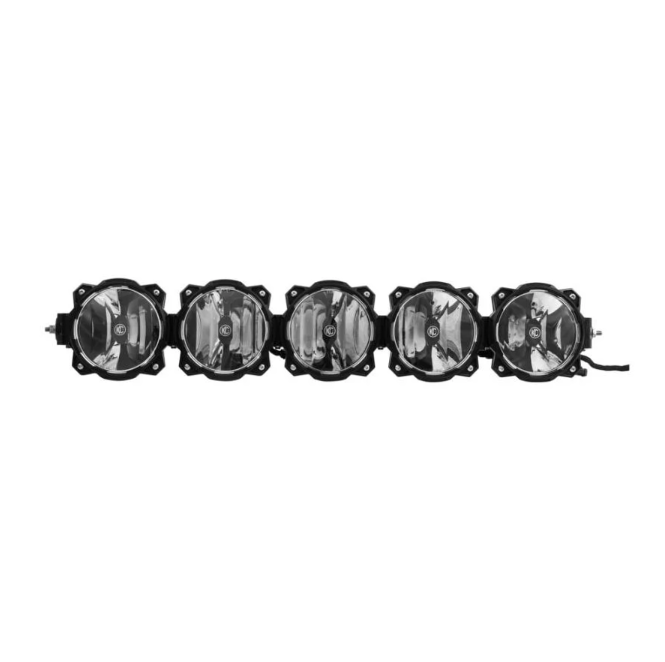

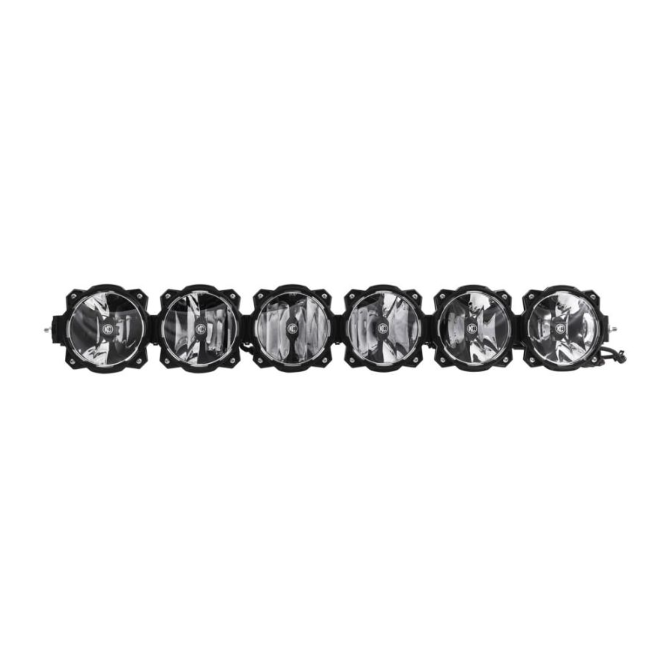

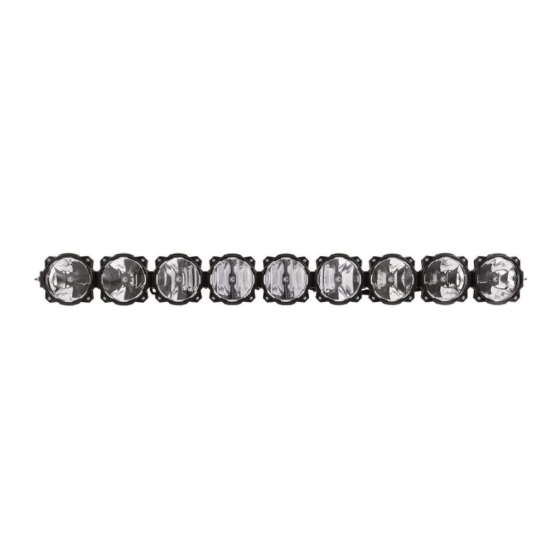

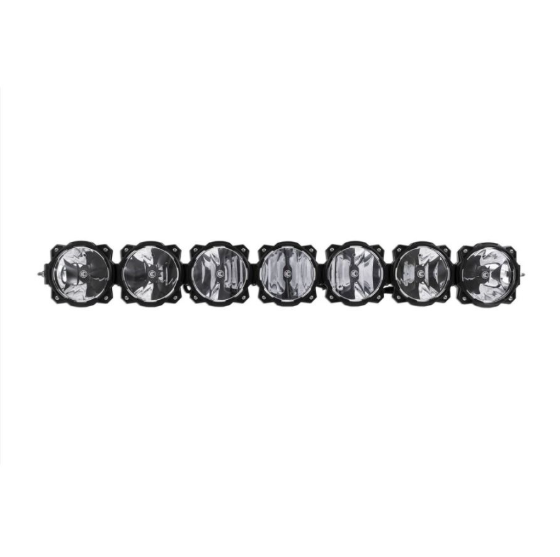

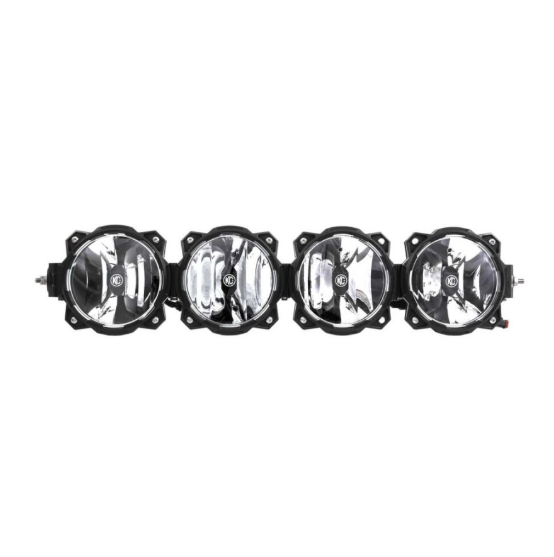

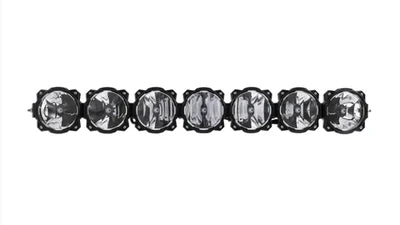

The Gravity® Pro6 LED Light Bar from KC HiLiTES is a trailblazer in off-road lighting, offering a blend of high-output performance, customizable design, and rugged durability. Designed for serious explorers, it delivers powerful illumination and beam precision across any terrain.
Each light in the system uses KC’s advanced G6 reflector technology to project a bright, efficient beam that covers both distance and width. Whether mounted in a straight line or curved to match your vehicle’s contour, the Pro6 ensures consistent lighting for everything from tight trails to open desert.
Built to withstand the elements, the Pro6 features a modular Infinity Ring® system that allows for easy expansion and adjustment. Its weather-sealed, IP68-rated housing and integrated cooling system ensure reliable operation in heat, rain, or dust.
The complete kit includes everything you need for a quick install, G6 LED lights, modular mounts, adjustable links, a wiring harness, and a switch making it easy to upgrade your rig with professional-grade lighting.
KC Hilites Gravity® Pro6 LED Light Bars Specifications
Specifications by Size
Weight
25.000000
Wattage Per Light
21.36W
Total Wattage
128.16W
Amp Draw Per Light
1.78a
Total Amp Draw
10.68a
Voltage
9V-36V
Lumens Per Light
2,508lm
Total Lumens
15,048lm
Lux Per Light
5,772lx (Spot) / 1,550lx (Wide 40)
Total Lux
4,089lx
Candela Per Light
577,000cd (Spot) / 155,000cd (Wide 40)
Total Candela
408,882cd
Light Temp
5000k
Lens Color
Clear
LED Color
White
Beam Pattern
Combo
Beam Distance
639m
Light Technology
LED

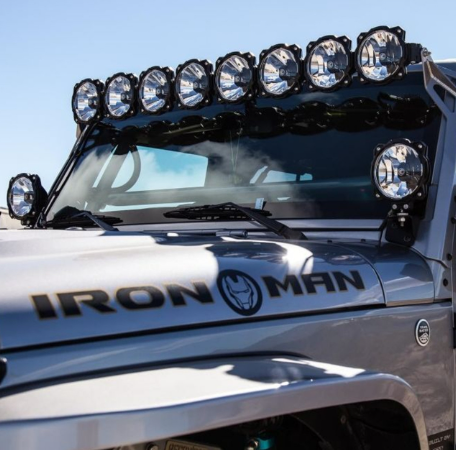

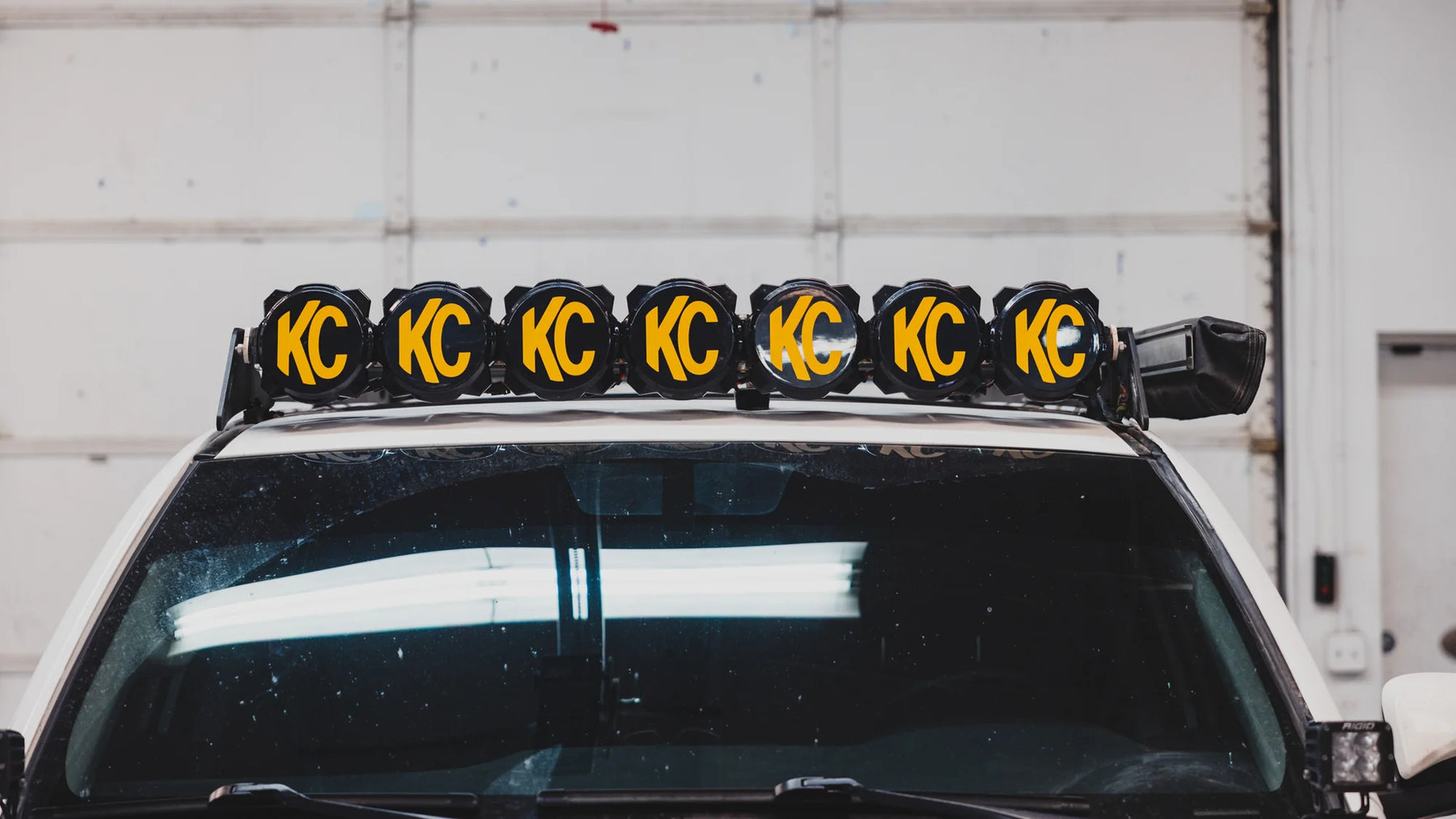

Mount Location
Overhead
Size of Products
39"
Included Components

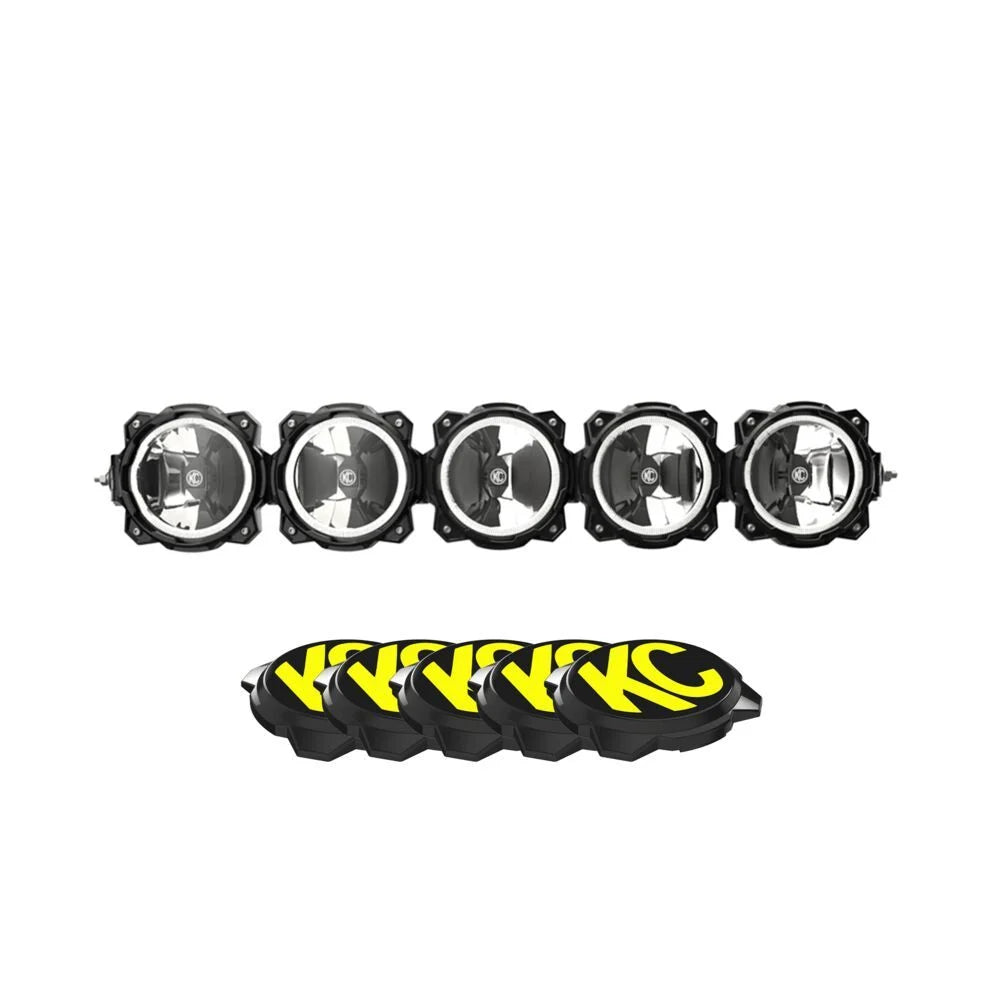

39" 6-Light Gravity® LED Pro6 Light Bar, 6 x KC Pro6 light cover, Plug-n-Play wiring harness, Illuminated LED light switch
Material
Aluminum Alloy
Product Dimensions
W: 39.125 " x H: 6.06 " x D: 3.33 "
KC HiLiTES Gravity® Pro6 LED Light Bars FAQ
Q: What makes the Gravity® Pro6 LED Light Bar unique? A: The Gravity® Pro6 uses patented Gravity® Reflective Diode (GRD) technology that delivers powerful, efficient lighting with superior beam control and distance. It is also fully modular, allowing straight or curved configurations.
Q: Can I customize the shape or length of the light bar? A: Yes. The Pro6 features KC’s Infinity Ring® system, which allows you to link, curve, or expand the light bar to fit your vehicle’s width or lighting needs.
Q: Is the Gravity® Pro6 suitable for all weather conditions? A: Yes. The light bar is IP68-rated for dust and water resistance, ensuring reliable performance in rain, mud, or desert environments.
Q: What beam patterns are available? A: The Pro6 combines spot and spread beams to create a powerful hybrid pattern that provides both long-range and wide-area illumination.
Q: What is included in the kit? A: The kit includes Gravity® LED G6 lights, Infinity Ring® mounts, adjustable links, a wiring harness, and a switch for easy installation.
Q: Does the Pro6 require special wiring or tools? A: No. The kit includes a plug-and-play wiring harness that allows for quick and straightforward installation on most vehicles.
KC HiLiTES Gravity® Pro6 LED Light Bars
Instruction and Installation Manual
Looking for detailed information on installing the KC HiLiTES Gravity® Pro6 LED Light Bars on your vehicle? Check out the installation instructions and setup guide below.
