Toyota Tacoma K9 Bed Rail Rack Kit Overview
The K9 Toyota Tacoma Bed Rail Rack Kit is the latest rack option from Eezi-Awn.

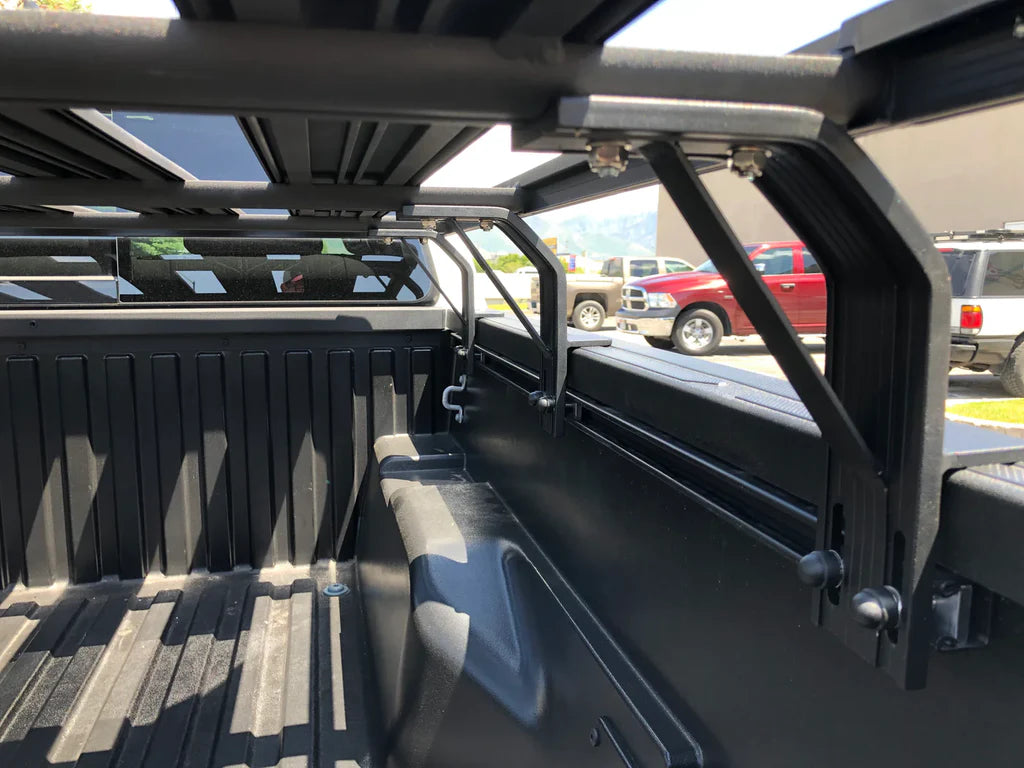

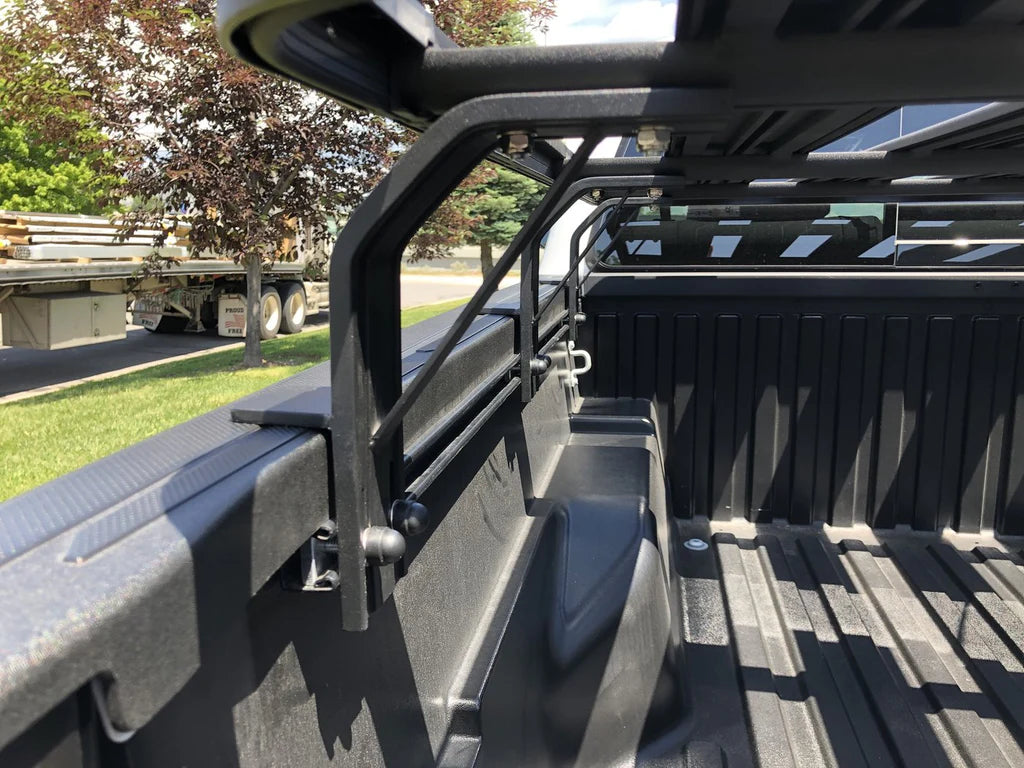

It uses the same platforms as the K9 Roof Racks, but with a bed rail mounted leg designed specifically for Toyota's under rail mounting channel.
Thanks to the design, the K9 Bed Rail Rack Kit requires no drilling at all for any size rack. In fact, installation of this rack system can be done by one person in about an hour.
Eezi-Awn Toyota Tacoma K9 Bed Rail Rack Kit Features
-
Fully Welded 1-3/8"H Low-Profile Platform
-
Lightweight All Aluminum Construction
-
All Components Are Anodized And Powder Coated Matte Black
-
5-1/8" Wide M8 T-Slot Slats, Running Front to Back
-
Semi-Elliptical Bottom Cross Braces To Reduce Wind Noise
-
M6 T-Slot Around Top Perimeter With Rounded Top Edge
-
Full Complement of K9 Bed Rail Rack Kits Accessories For Top/Bottom/Side Mount
-
Infinite Gear Organization Configurations
-
Includes All Installation Components & Hardware
Free onX Maps Subscription
A Free 3 months subscription to onX Off-Road Maps is included with your order. Below are some of the top features of onX maps:
- Tons of Off-Road Trails - You can find thousands of trails for Overlanding, SxS, 4×4, ATV, dirt bike, and snowmobiles across the nation.
- Save Maps for Offline Use - Heading somewhere remote? You can Save maps to your phone or tablet, including all interactive land and trail data.
- Track, Save, and Share Trips - Easily track your trips, including location, distance, speed, and elevation with Go and Track’s GPS capabilities.
Eezi-Awn Toyota Tacoma K9 Bed Rack Specifications
|
Platform: |
5’ Bed - 1400mmW x 1400mmL (55”W x 55”L x 1.38”H) |
|---|---|
|
Platform: |
6’ Bed - 1400mmW x 1600mmL (55”W x 62”L x 1.38”H) |
|
K9 Bed Rail Legs: |
5’ Bed - 6 Legs, 6’ Bed - 8 Legs |
|
Height, Bed Rail to top of Platform: |
6.5” |
|
Height, Bed Floor to bottom of Platform: |
23.5” |
|
Height, Top of Platform to top of cab: |
13” |
Capacity
Capacity of the K9 roof rack system is broken into two measurements, static weight and dynamic weight. Static is when the vehicle is stationary. Dynamic is when the vehicle is in motion. A dynamic capacity in the range of 500 pounds is possible. That load included a roof top tent, awning, dual fuel can holder, aluminum storage case with recovery gear, shovel, axe, under mount table, light bar, etc. A static capacity of 1000 pounds is possible. An example of static load increase would be adding people in the tent on the roof.
System Accessories
The Eezi-Awn K9 Bed Rail Rack Kits comes with a complete array of bolt on accessories. Jerry Can holders, Axe mounts, Shovel mounts, Hi-Lift Mounts, Max Trax Mounts, Awning Mounts, Under Rack Table mounts, and much more.
