KC HiLiTES Cyclone V2 LED 6-Light - Rock Light Kit

Price
Regular price $36499
Regular price $32900 Sale price $36499
Save $-35.99
/
  • Free Shipping (48 States)
  • 30-Day Easy Return (Unused & Undamaged Items)
Authorized Dealer

Overland Junction is an authorized dealer of KC Hilites products and all purchases include full manufacturer warranty coverage.

Overview

The KC HiLiTES Cyclone V2 LED 6‑Light Rock Light Kit is engineered to deliver powerful underbody illumination for serious off‑roaders. Compact yet versatile, these lights are designed to highlight wheel wells, suspension components, and ground terrain, ensuring maximum visibility during nighttime trail runs or technical crawling.

Each Cyclone V2 unit is built with KC’s advanced LED technology, producing a wide‑angle flood beam that evenly lights up the surrounding area. Whether you’re navigating rocky paths, setting up camp, or working on your rig after dark, the Cyclone V2 provides dependable clarity exactly where you need it.

Durability is central to the Cyclone V2 design. Featuring an impact‑resistant polycarbonate lens and rugged aluminum housing, these lights are sealed against dust and moisture for consistent performance in harsh environments. Their compact form factor allows flexible mounting on wheel wells, bumpers, racks, or even interior panels, making them one of KC’s most adaptable lighting solutions.

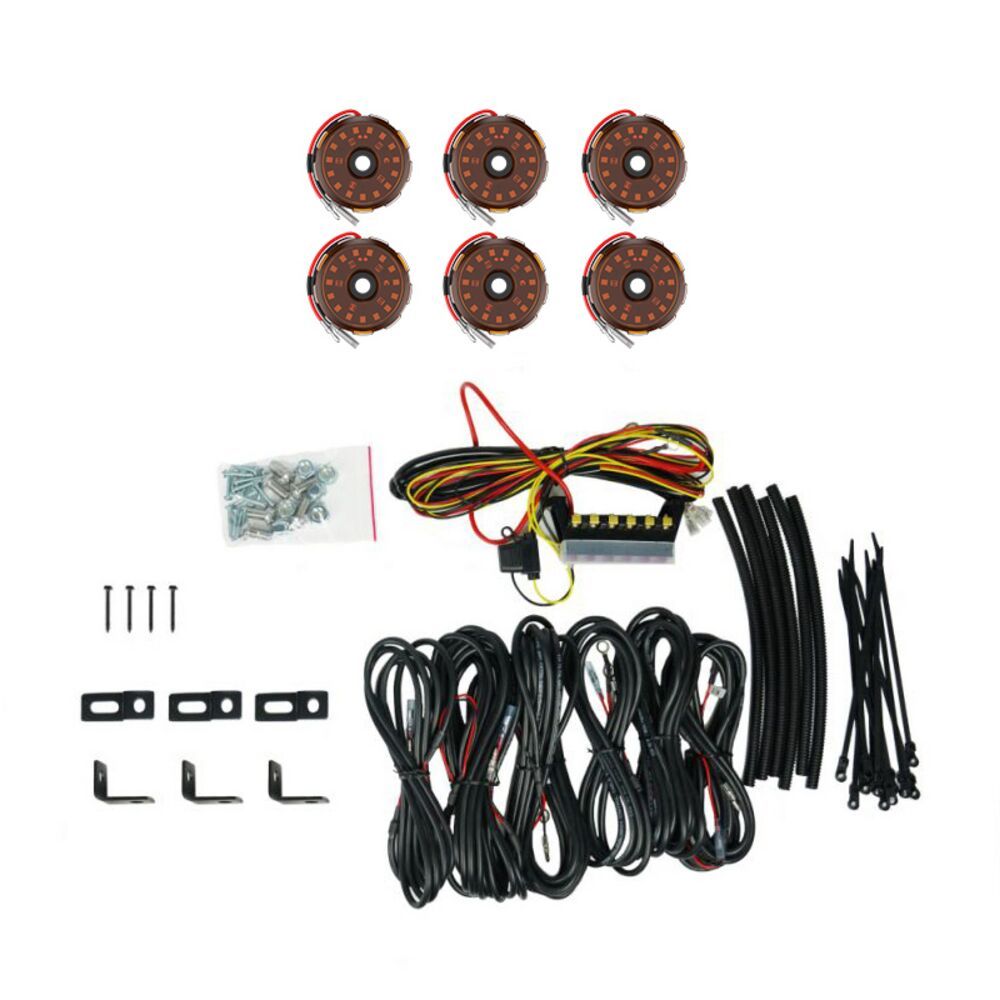

The 6‑Light Rock Light Kit includes six Cyclone V2 LED lights, a complete wiring harness with weatherproof connectors, an LED switch, and mounting hardware. With its plug‑and‑play installation and trail‑ready toughness, this kit is a practical upgrade for enthusiasts who demand both versatility and reliable performance from their auxiliary lighting.

kc hilites cyclone v2

Specifications



Specification Details
Weight ~4 lbs (kit total)
Compliance SAE J1113, ECE R10
Wattage Per Light 5W
Amp Draw Per Light 0.42A
Voltage Range 9V–16V
Lumens Per Light 600 lm
Light Temperature 5000K (bright white)
Lens Color Clear
LED Color White
Beam Distance Wide‑angle flood (short‑range coverage)
Light Technology LED with multi‑reflector optics
Mounting Locations Wheel wells, underbody, bumpers, racks, interior panels
Size 2.2” diameter
Material Aluminum housing, polycarbonate lens
Finish Black
Included Components 6 x Cyclone V2 LED lights, wiring harness with weatherproof connectors, LED switch, mounting hardware
Product Dimensions (W) 2.2” x (H) 0.53” x (D) 2.2”
IP Rating IP68



FAQ

Q: What is the Cyclone V2 Rock Light Kit designed for?

A: It’s built to provide bright, wide‑angle underbody lighting, making it easier to see terrain, wheel placement, and obstacles during nighttime off‑road driving or rock crawling.



Q: How many lights are included in the kit?

A: The kit comes with six Cyclone V2 LED lights, a complete wiring harness with weatherproof connectors, an LED switch, and mounting hardware.



Q: What kind of beam pattern do these lights produce?

A: Each Cyclone V2 delivers a flood‑style beam with 600 lumens of output, designed to spread light evenly across the ground and surrounding area.



Q: Where can the Cyclone V2 lights be mounted?

 A: They can be installed in wheel wells, underbody panels, bumpers, roof racks, or even inside the vehicle for utility lighting.



Q: Are the lights durable enough for harsh conditions?

A: Yes. With aluminum housings, polycarbonate lenses, and IP68 waterproof/dustproof ratings, the Cyclone V2 lights are built to withstand mud, water crossings, and rugged terrain.



Q: What voltage range do they support?

 A: The Cyclone V2 operates between 9V and 16V, making it compatible with most off‑road and overland vehicle electrical systems.



Q: Do these lights come with a warranty?

A: Absolutely. KC backs the Cyclone V2 Rock Light Kit with a limited lifetime warranty covering defects in materials and workmanship.





Instruction and Installation Manual

Looking for detailed information on installing the Cyclone V2 LED 6-Light - Rock Light Kit? Then check out this installation manual below.

CYCLONE V2 INSTALLATION
