KC Hilites Gravity® Titan™ LED Light Bar Overview

Engineered for serious off-road performance, the Gravity® Titan™ LED Light Bar sets a new benchmark in lighting innovation. Building on the legacy of the Pro6 series, the Titan delivers enhanced brightness, broader beam coverage, and a distinctive amber mode for improved visibility in dusty or foggy conditions.

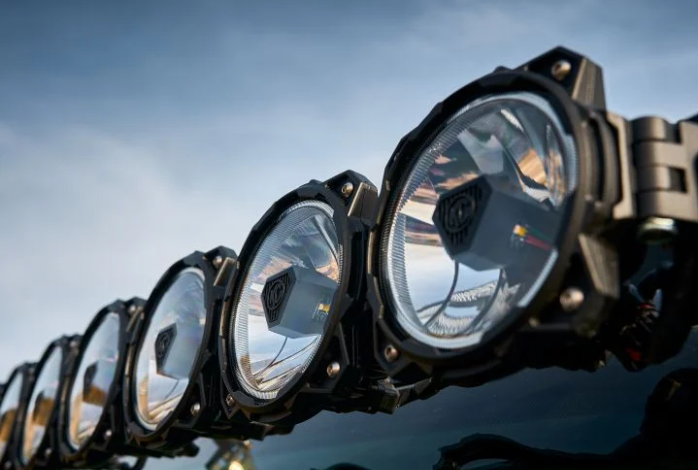

At the heart of the system is the Titan Core, a powerhouse that drives three LEDs per optic, delivering significantly more output and beam reach than its predecessor. With the flip of a switch, users can toggle between a high-intensity mode for trail clarity and an amber setting designed for low-visibility environments.

Durability is a given, thanks to KC’s advanced cooling system that manages heat efficiently for long-lasting performance. The modular design, featuring the Infinity Ring® system and MoistureBlock® sealing, allows users to customize the bar’s shape and length to suit their vehicle and terrain.

Whether you're navigating tight switchbacks or open desert, the Titan ensures your path is lit with precision, power, and reliability.

KC Hilites Gravity® Titan™ LED Light Bar Specifications

Weight	37.500000
Wattage Per Light	11.2W (Amber) / 39.48W (White)
Total Wattage	89.6W (Amber) /315.84W (White)
Amp Draw Per Light	0.93 a (Amber) / 3.29 a (White)
Total Amp Draw	7.47 a (Amber) / 26.32 a (White)
Voltage	9V-36V
Lumens Per Light	2,972 lm
Total Lumens	23,776 lm
Lux Per Light	1,443lx (Spot) / 775lx (Wide 40)
Total Lux	10,205 lx
Candela Per Light	144,250cd (Spot) / 77,500cd (Wide 40)
Total Candela	1,020,500 cd
Light Temp	5000 K
Lens Color	Clear
LED Color	Amber / White
Beam Pattern	Combo What's this?
Beam Distance	1,010 m
Light Technology	LED

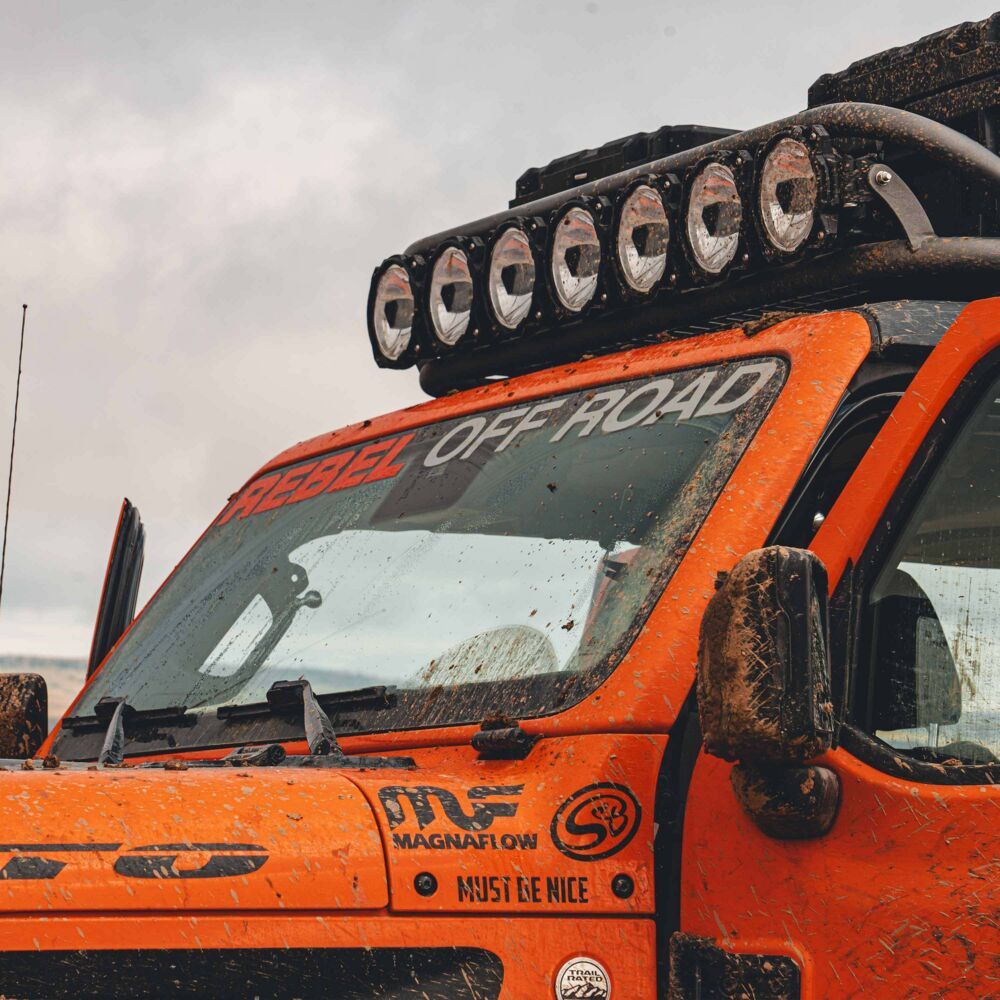

Mount Location	Overhead
Size of Products	50"

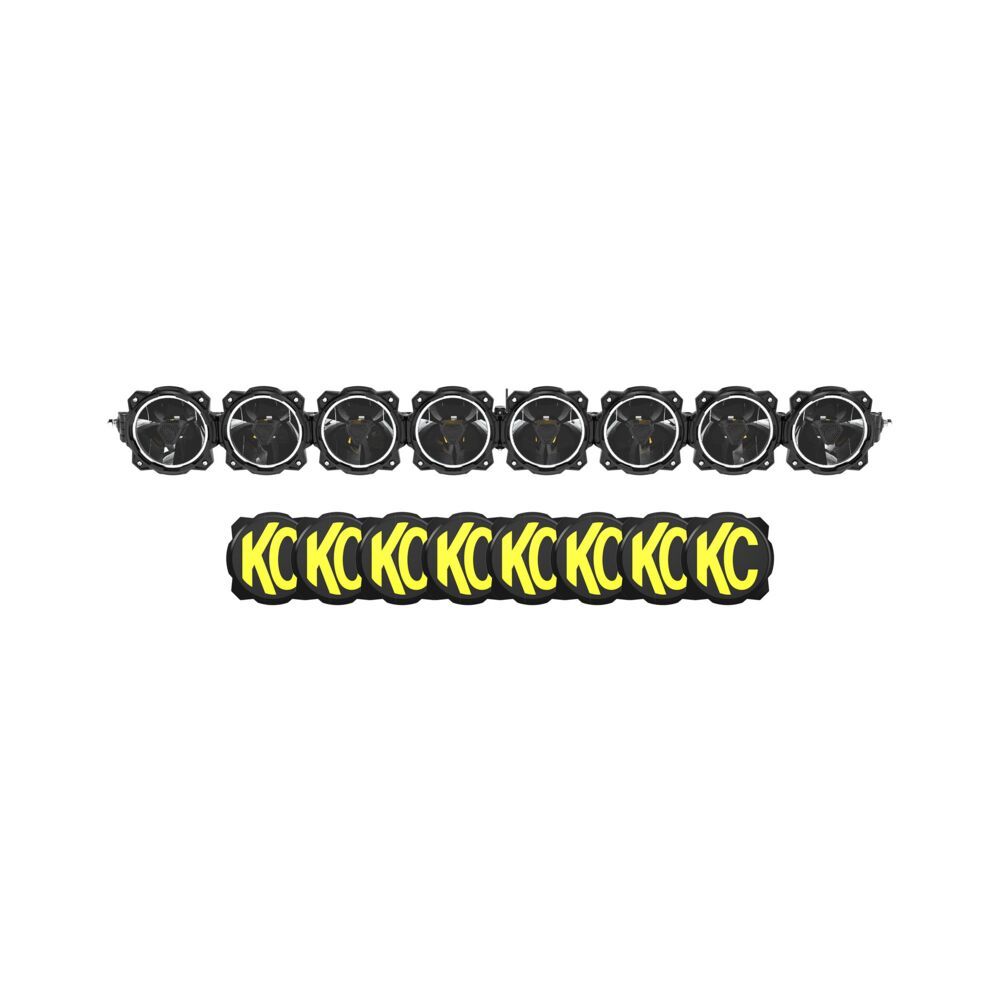

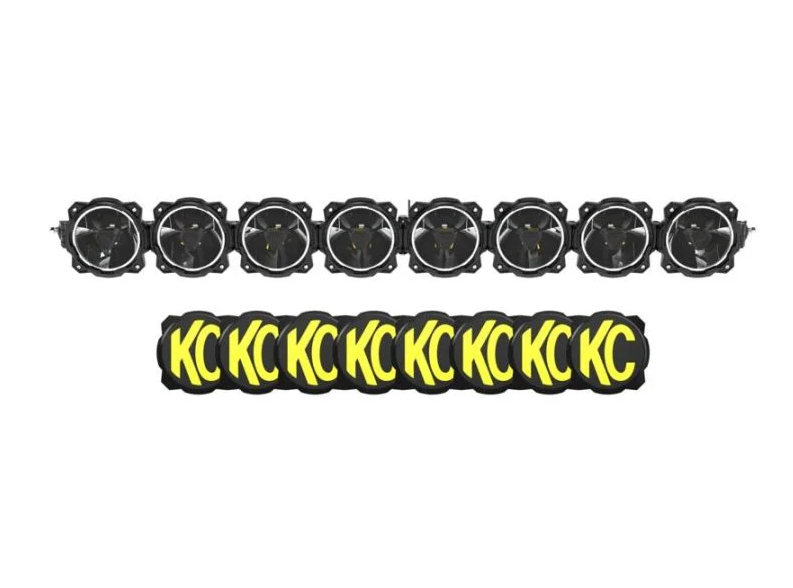

Included Components	1 x 50" Gravity® Titan™ LED Light Bar - 8-Light, 8 x Gravity 6" Light Cover - Black with Yellow KC Logo, 1 x Complete Plug-N-Play Wiring Harness with 3-Position Switch, Hardware
Color	Black
Product Dimensions	W: 51.58 " x H: 6.05 " x D: 3.27 "

KC Hilites Gravity® Titan™ LED Light Bar FAQ

What are the minimum recommended fuse sizes for the Gravity Titan LED systems?

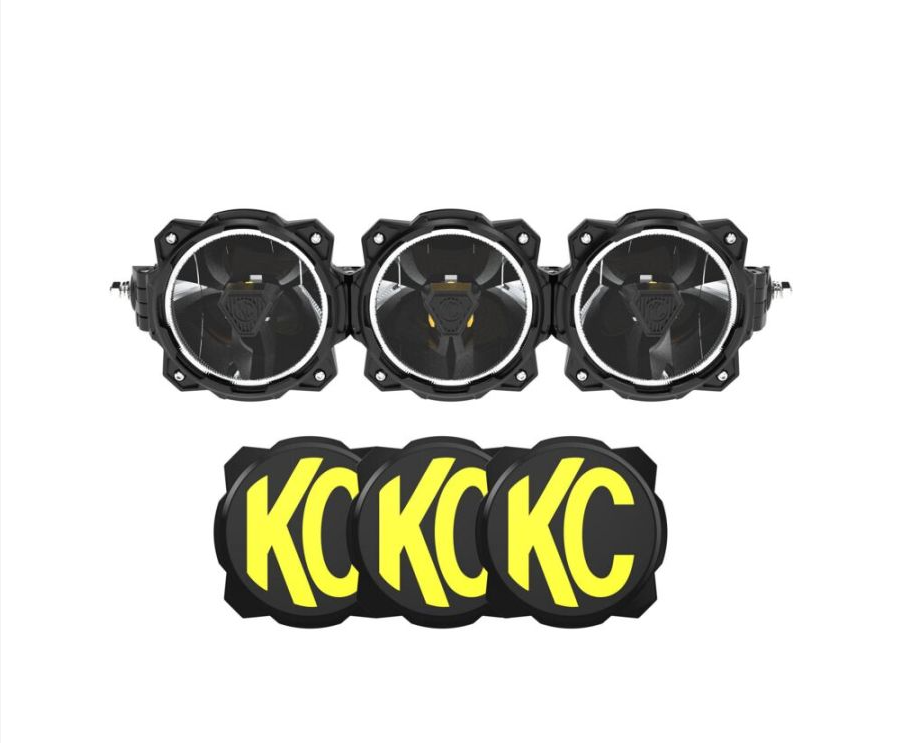

• 3-Light System: White/High 15 a, Amber Backlight 5 a

• 4-Light System: White/High 20 a, Amber Backlight 5 a

• 5-Light System: White/High 25 a, Amber Backlight 10 a

• 6-Light System: White/High 30 a, Amber Backlight 10 a

• 7-Light System: White/High 30 a, Amber Backlight 10 a

• 8-Light System: White/High 35 a, Amber Backlight 10 a

• 9-Light System: White/High 40 a, Amber Backlight 10 a

Are the Gravity Titan lights replacing the Gravity Pro6 lights?
No. The Gravity Titan lights are not replacing the Pro6 series. Instead, they expand the Gravity lineup with enhanced performance, improved cooling, and added features for both on-road and off-road use.

What are the differences between the Gravity Titan and Pro6 lights?
The Titan Light Bar shares the same modular design as the Pro6 but introduces major performance upgrades. Each Titan Core houses three LEDs instead of two, providing a larger illumination zone, increased brightness, and greater beam distance. The Titan also uses a new MoistureBlock® panel connector instead of a pigtail for a cleaner, more durable setup.

Do the Gravity Titan lights include an amber backlight?

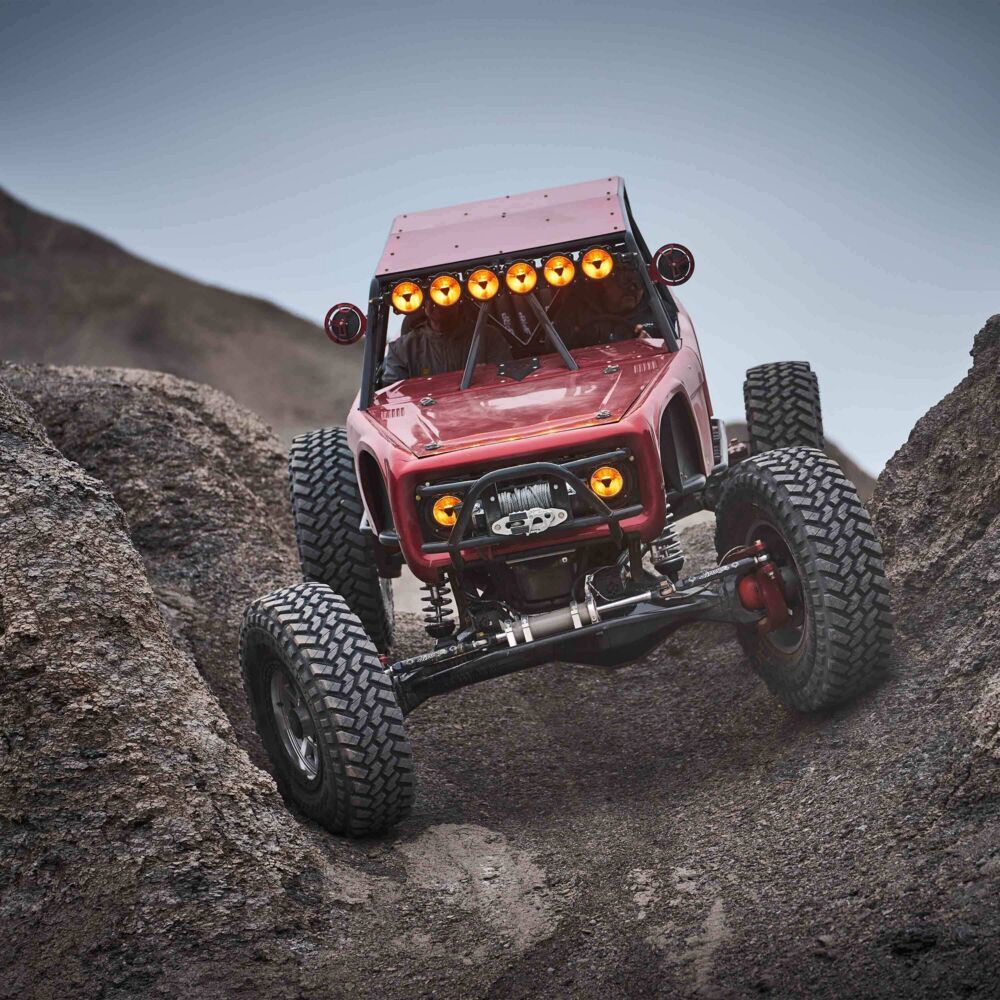

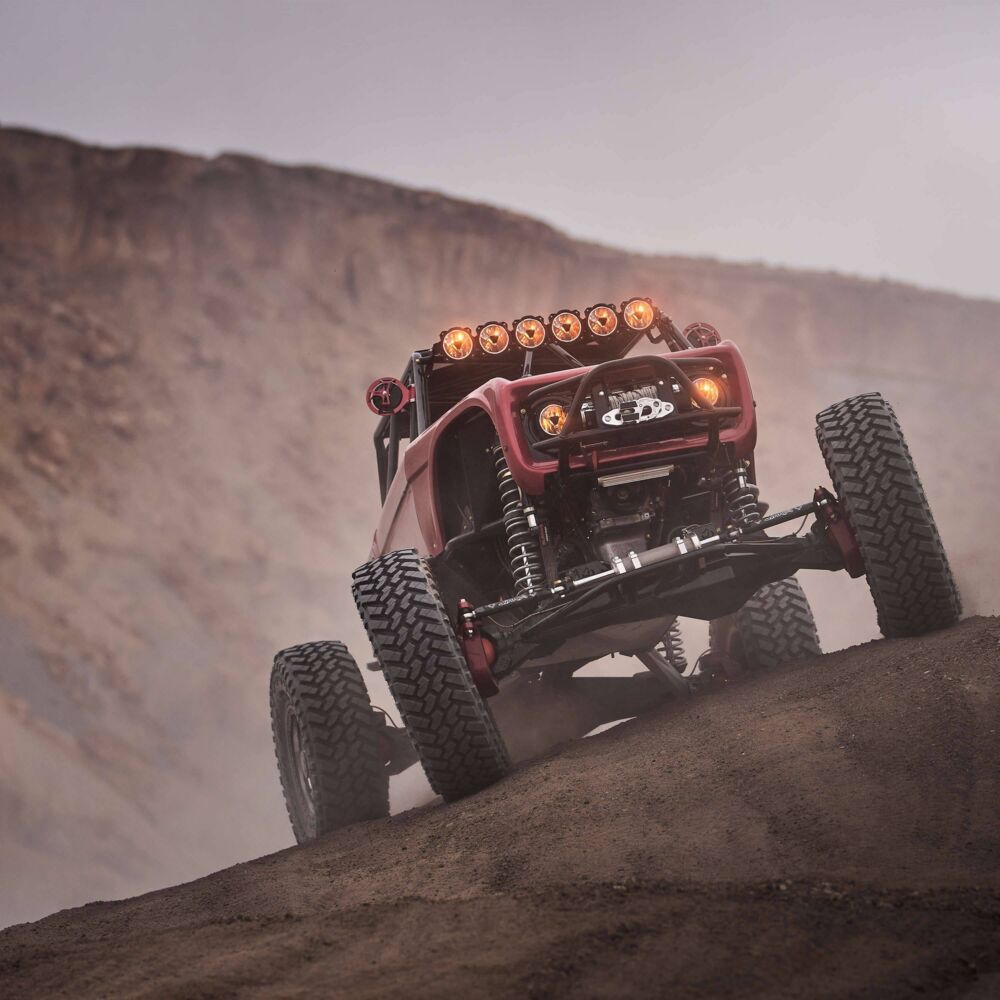

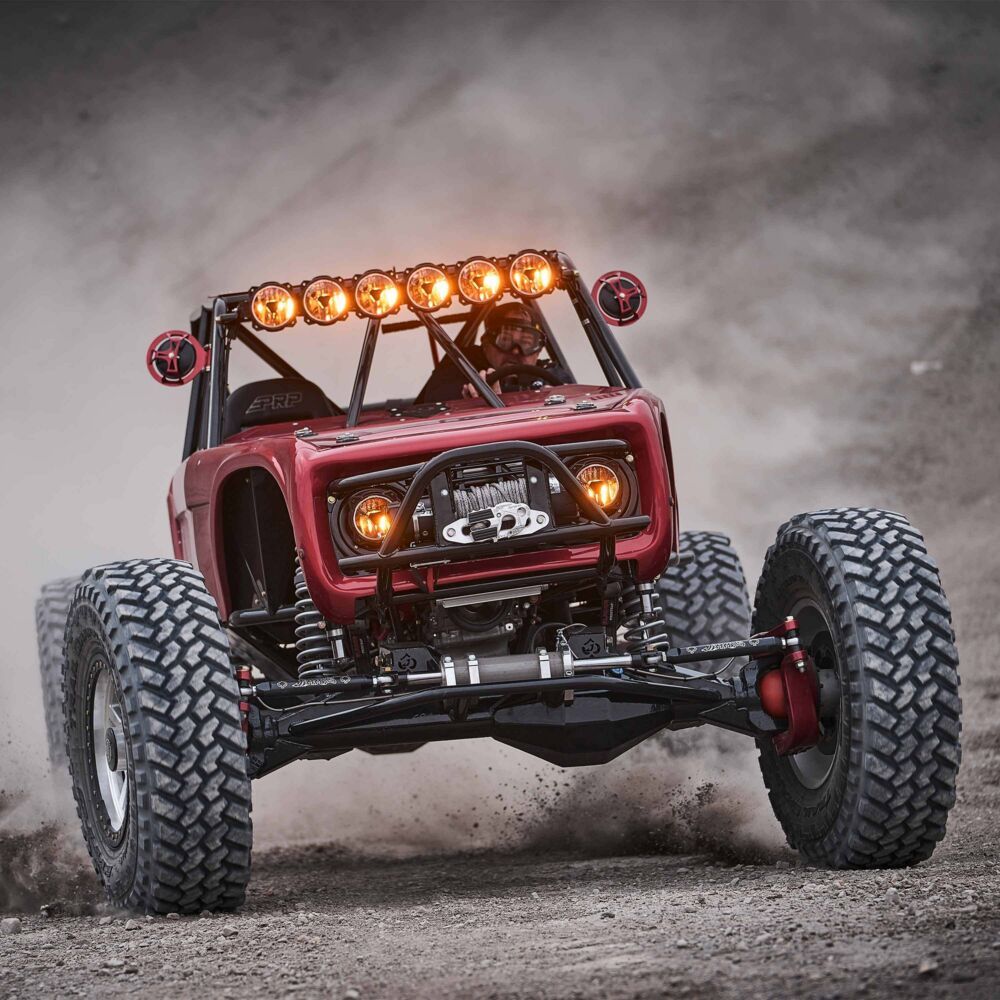

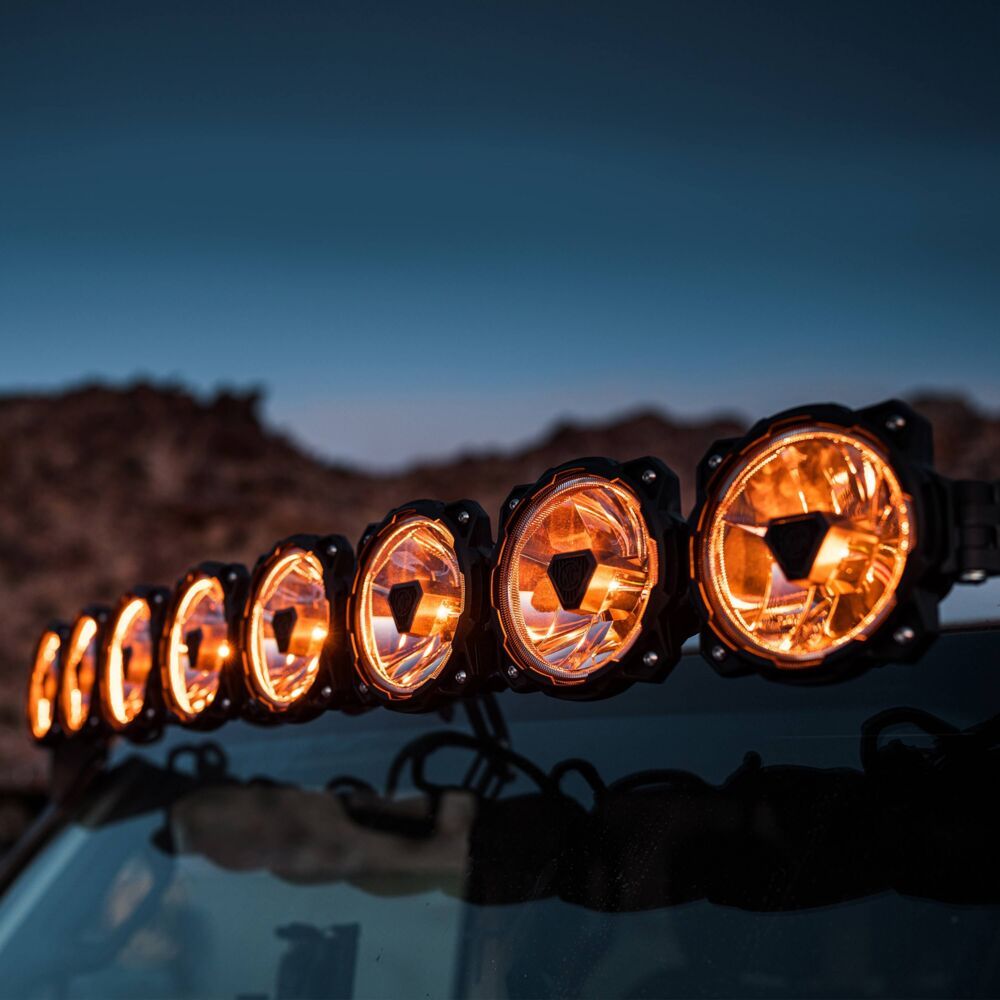

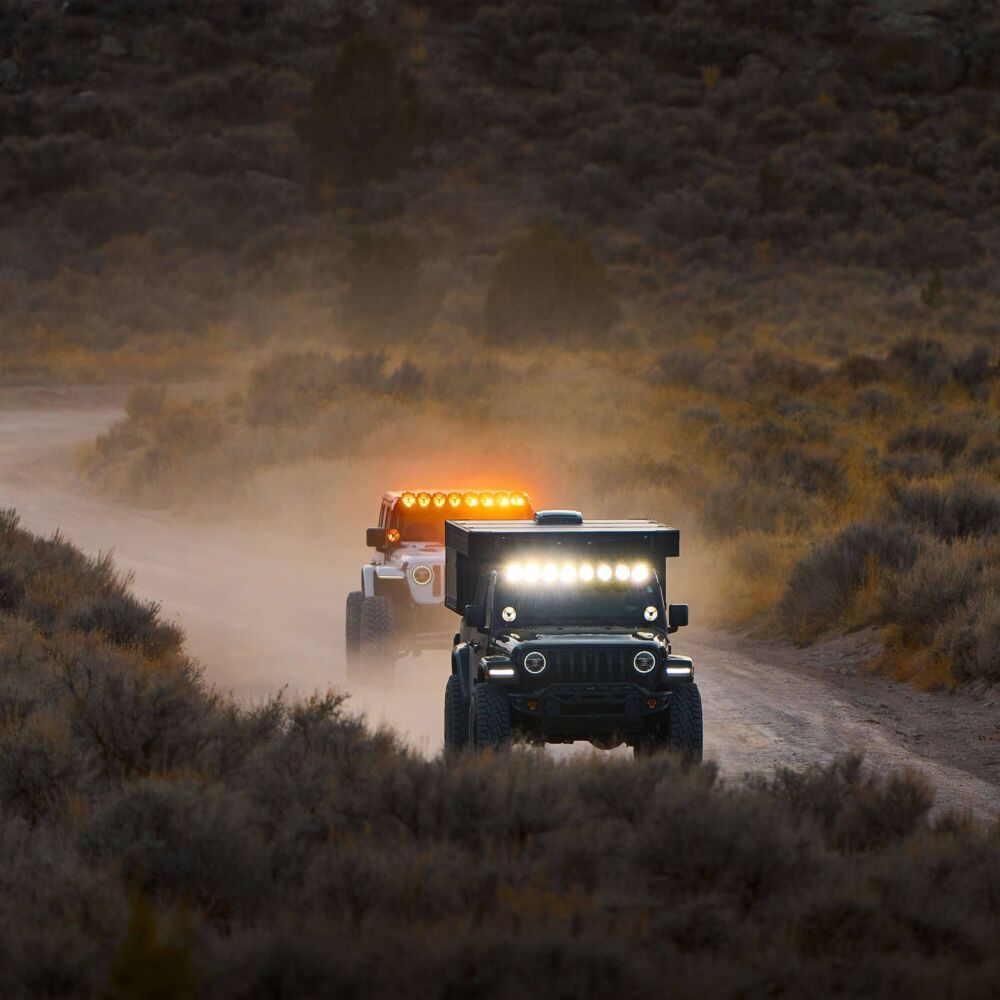

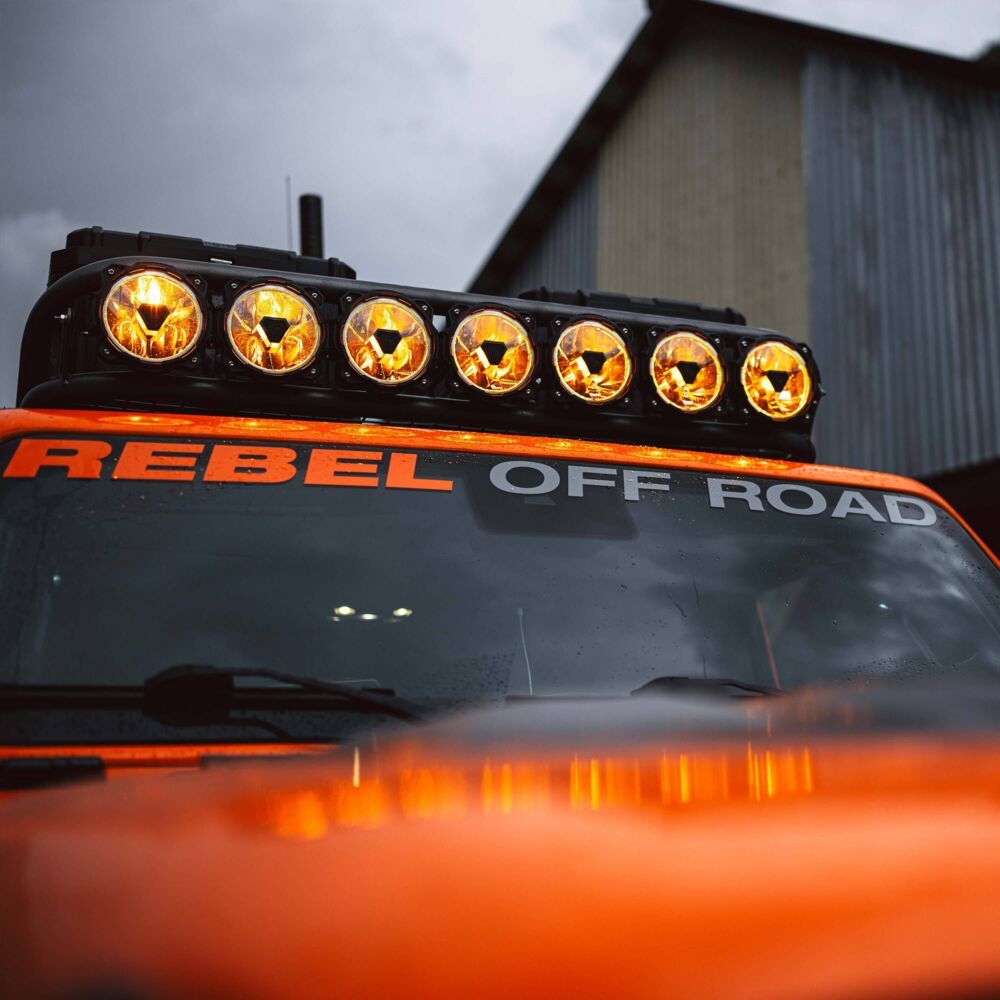

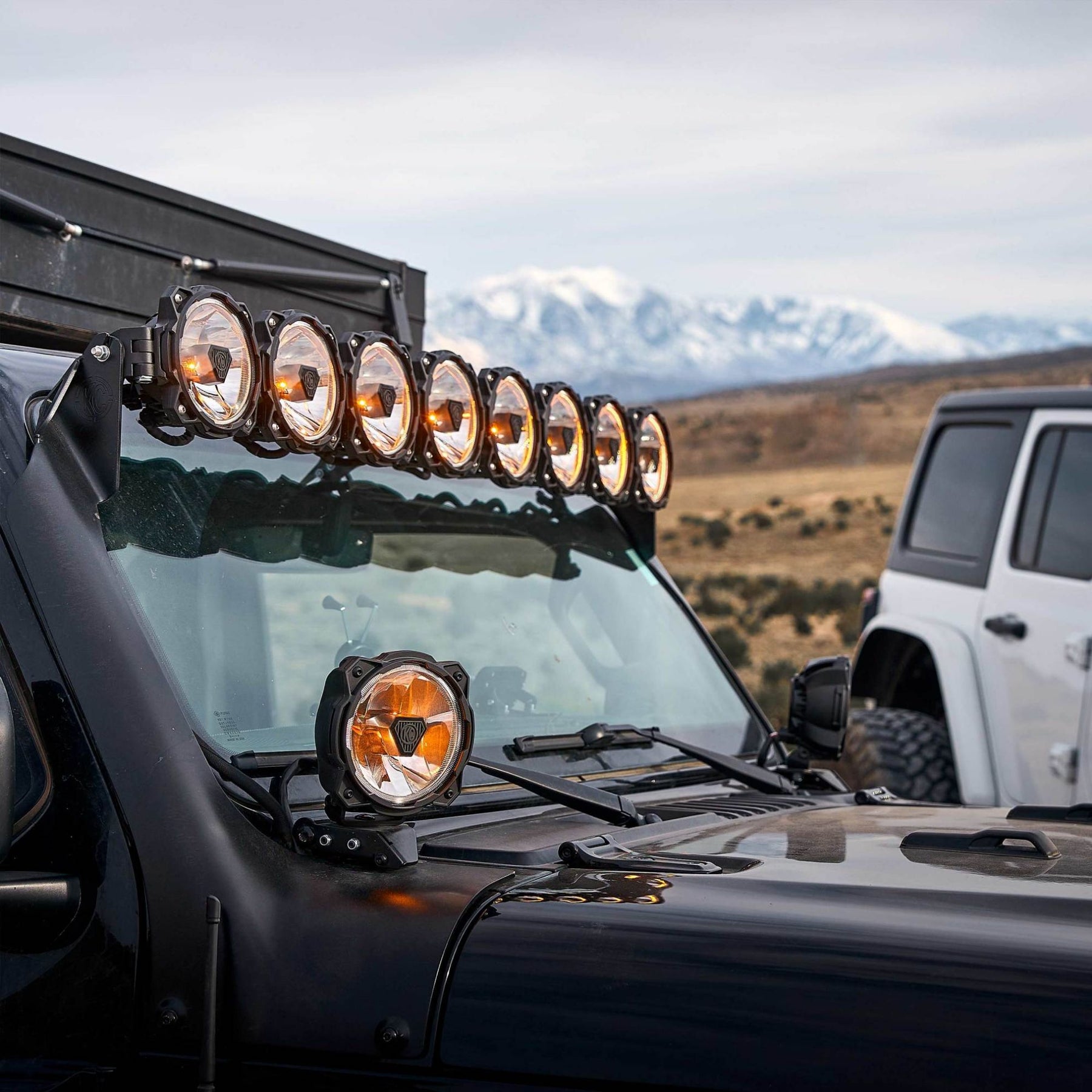

Yes. The Titan features two power modes: a high-intensity white mode for powerful forward illumination and an amber backlight mode for visibility in dust, fog, or snow. The amber LEDs act as marker lights to improve safety in low-visibility conditions.

Why don’t the Gravity Titan lights have as many lumens as some other brands?
While other brands may list higher lumen counts, KC’s patented Gravity Reflective Diode (GRD®) technology focuses on lux — the actual usable brightness reaching the terrain. This results in superior beam precision, efficiency, and real-world visibility compared to raw lumen numbers.

What exactly is MoistureBlock® technology?
MoistureBlock® technology prevents water and contaminants from entering the housing or electrical connections. The Titan uses a sealed panel-mount connector to ensure long-lasting performance even in extreme off-road conditions.

How does the wiring harness connect to the Gravity Titan lights?
Instead of a standard pigtail cable, the Titan uses a panel-mount connector at the rear of the housing. This allows for a cleaner, more professional installation and improved resistance to wear and moisture.

How do I adjust the radius of my light bar (straight vs. curved)?
The Titan’s patented Infinity Ring® system allows you to configure your light bar as straight, semi-radius, or full-radius, giving you flexibility to adapt the beam spread to your vehicle and driving conditions.

Do the Gravity Titan lights use the same mounts as the Pro6?
Yes. The Titan and Pro6 Light Bars share the same mounting points and hardware, making them compatible with existing KC Pro6 mounts and most universal light bar brackets.

What beam patterns are available for the Gravity Titan Light Bars?
Titan Light Bars are configured with a Combo Beam pattern — outer lights use Wide-40 optics for flood coverage, while the inner lights use Spot optics for long-distance projection. This hybrid setup provides both width and distance in one powerful package.

KC Hilites Gravity® Titan™ LED Light Bar Instruction and Installation Manual

Looking for detailed information on installing the KC Hilites Gravity® Titan™ LED Light Bar on your vehicle? Check out the installation instructions and setup guide below.
